1.3" COLOR OLED [E602AS] 2-Way Communication Modulation : FM(FSK) Carrier Frequency : 433.92MHz

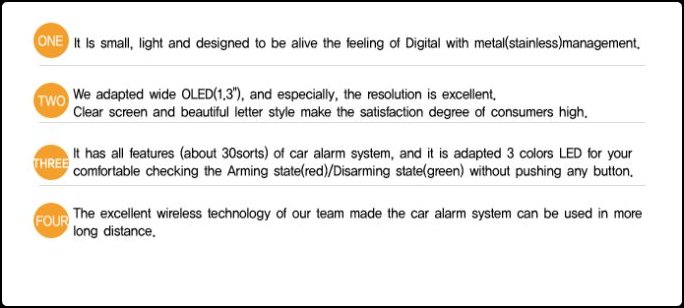

OLED FEATURES
ONE TWO THREE FOUR

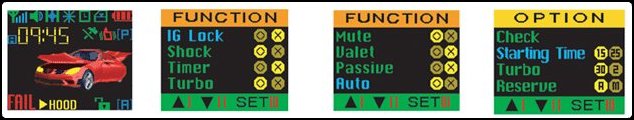

1. Cause for failure or arming and auto start can be easily checked [CHECK FEATURE] 2. All the functions can be easily and comfortably selected with color OLED display [FUNCTION SETTING] 3. Door can be locked and unlocked automatically when approaching [AUTOMATIC DOOR] 4. You can change Turbo and Start time Etc easily [OPTION SETTING]
EASY DOOR LOCK
Remarkable New Function Installed!!! Just knock 4 Digits pre-installed password, you can arm(Door Close)/disarm (Door Open) the car security system without remote controller. Sensor part built-in 10 LEDs can display various status depend on its function.
*AUTO DOOR When the car owner with remote stay beside the vehicle for a long period of time, the door will be open and close repeatedly. You can set Auto door to ( pause ) by pressing button ll and lll simultaneously for 0.5 seconds when the vehicle is disarmed, Auto door ( pause ) is automatically cancelled. *Second Car Function second car function is used to operate two vehicles with EASYCAR remote car starter or alarm system with one remote. You must register a remote in both vehicles to function. *Auto Start Press button ll for 2 seconds, [start] appears, then remote chirps and parking lights flash once each. If it fails, the system tries auto start maximum 3 times automatically. *Query Function Query function allows you to check the status of your car by pressing button lV for 0.5 seconds. The icon and the chirp sounds show you the status. If you are within transmitting distance to receive the signal for shock, theft and easy call, you will receive the responses like chart. *Trunk Open Press and hold the button lll for 2 seconds to open the trunk. Parking lights will flash twice and the siren will chirps twice. *Vibration on/off Press button (l+ll) for (VIB ON), and press button (l+ll) again to turn it off. *Panic Mode In this case, your vehicle will lock the door if unlocked already and the siren will activate and the parking light will flash for 1 or hafl minute. *Real Time Remote Paging Function In the situation of the optional owner call, theft report and shock sensing is triggered, it is reported to the remote with beeping noise and flashing icon. Theft is reported with continuous beeping noise until you press any button on the remote. If the remote is set on Vibration mode, blue LED on the will blink rapidly. *Owner Call This mode allows people to call u by knocking 2 times on *Shock Sensing Report Mode This function reports to your remote any shocks at your vehicle in arming mode. When your vehicle is shocked, your remote sounds warning continously. *Theft Report Mode Our system recognizes it as Theft and activates Alarm function when doors open by force or with the key in arming mode. Siren chirp and remote warns continually in Theft mode. *2x Auxiliary Output (optional) This mode is used to control (on/off) one of the various functions such as Convertible car, Sunroof, Car Audio, Window Remote Power etc. *Knock Sensor (option setting) If you knock just twice during Arming remote bells. This function can not be used Key On and Ignition On. And also, thisplays as LED role for Arming display. *Valet Function Valet mode is useful when loaning your vehicle or having it served (example: car wash, parking lot and auto repair shop). *Passive Mode The door are locked automatically in 30 seconds after all the door are closed and engine is off. *Driving Door Lock (ignition lock) This function enables your vehicle to automatically lock the door in 30 seconds after starting. *Shock Sensing *Example* It is useful when you or your baby sleep in the vehicle, or your pet stays in the vehicle. *Timer Start Mode The vehicle will automatically start at reserved time every 24(3) hours. *Turbo Mode Under this mode, engine keeps running for 30 seconds(it can be changed to 2 minutes by optional setting) after key has been taken from ignition.
http://www.samitoelectronics.com/caralarmarticles/easycar-alarm-nextgeneration2.html
For more enquiries please email us.
*All materials, man power and its cutting edge technology are truely from Korea. *No Modifications as all Accessories in the package set are manufactured and genuine from Korea. *Our Products are provided with 2 years warranty. *All Products Sold are STRICTLY Non Refundable. *Faulty products are to be send back within 14 days from the date we ship your order. *Faulty products will be examine to ensure it's not humanmade to meet the requirement for a replacement. *Any products sent back after 14 days will not be entertained. |
||||||
the front window of the vehicle. You can recognize this call through the icon on the remote TFT LCD.
